I have made all the coils and colored them to help with the wiring.
I have made a jig out of mdf to cast them in, in a similar way to which I
made the magnet motor mold.
I poured the resin into the mold and found that its not a good idea to over fill the mold
as it was very hard to get the stator disc out of the mold.

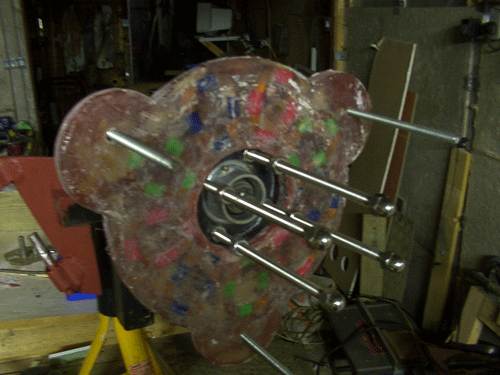

I have put the Stator in the main body just to see how it fits.
It needs a bit of a clean and I think it looks like teddy bear.
