I have all the coils and the stator wiring connected in a star configuration and terminated
 to a terminal block on the back of one of the stator bracket arms.

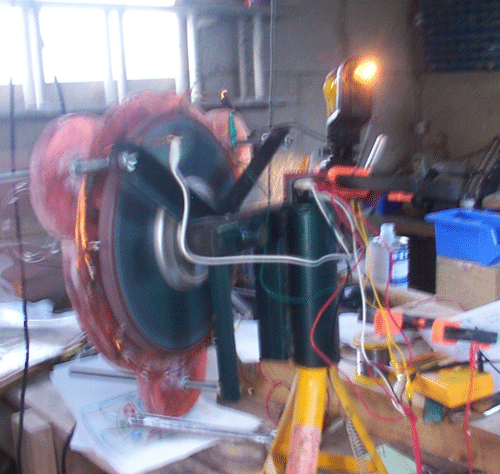

 I tested them and got a 12v 21w bulb to glow when I spun the centre
I still don't know how much power I will get out of this wind turbine but I got somthing at this stage.

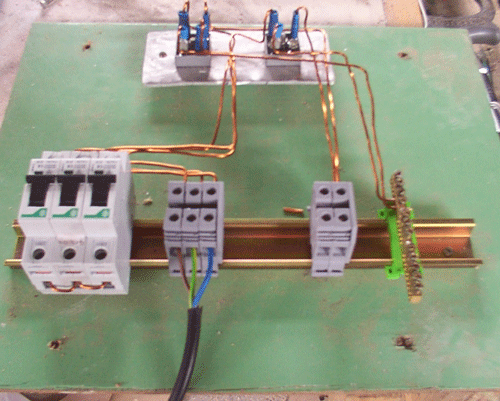

I have put the rectifiers on a board. The board is a bit over the top just for the rectifiers.
On the board there also are 3 trips which can be switched to short out the 3 phase
from the turbine for an electric magnetic brake, and causes the rotor to stop turning.

 (Magnetic braking).
