The controller is all done and working.

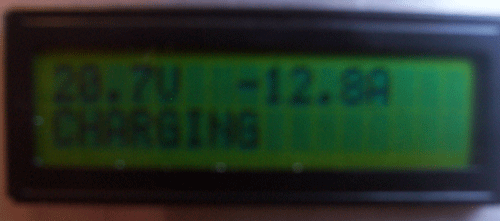

Here is a photo of the display. its just showing 20.7v which is a temp supply.
  The amps are -12.8A and its not wired up yet so it's not charging its just saying charging.

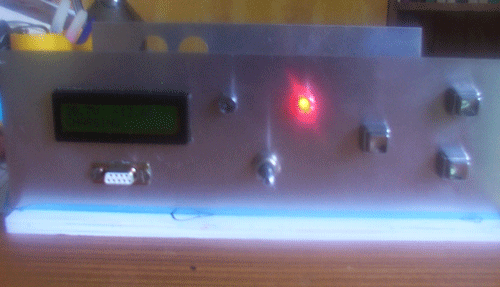

Here is the front panel.  It needs some labels.
