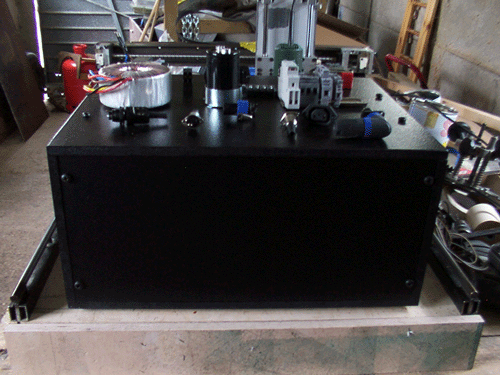

I have had a cool black box made for the power supply and drivers for my cnnc mill and on top of it is some off the parts witch will be going in the control box

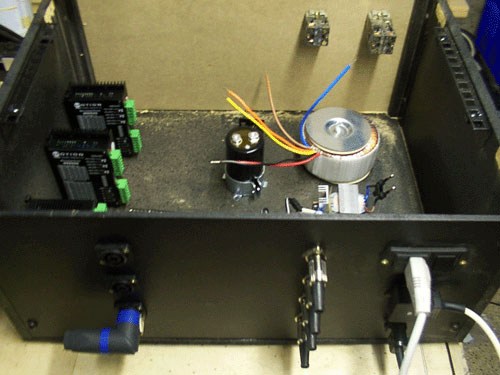

I have started to put some parts in the control box. the red and green switch will start and stop the mill(e stop) and the black slider switch witch you can just see will switch between two home switches on the X axis a long and short one

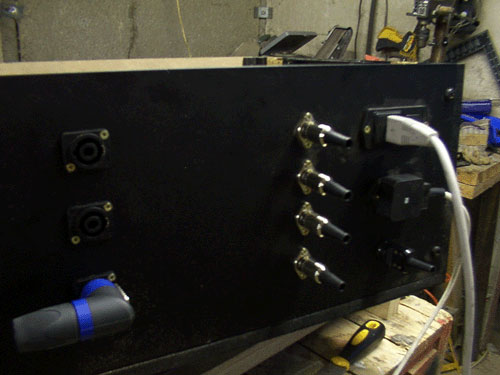

here I have put some plugs on the back of the box for inputs and out puts for the home switches and motors there is also a 240v output for the router

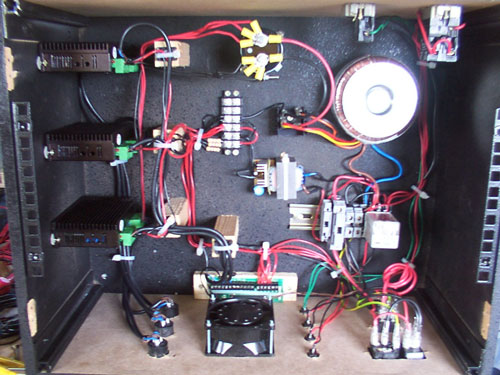

here is the control box all done

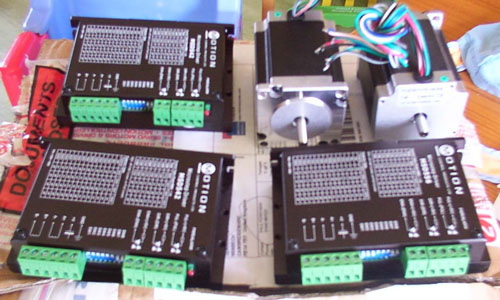

here are my stepper motor controllers
and two motors
